E62-3HF Series系列

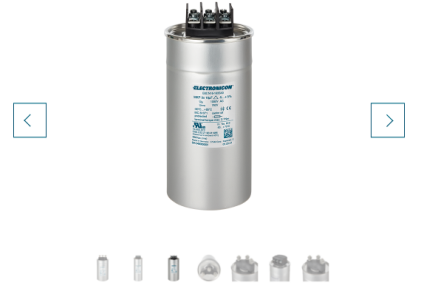

E62-3HF with CAPAFIX™ and CAPASTUD™ terminals - the perfect AC Capacitor for High Frequency Filters

E62-3HF answers the growing demand for single and three-phase AC capacitors that can withstand AC currents in the kHz range. With their high AC load capacity, they are designed especially for heavy duty operation in extreme or sophisticated operating conditions, such as AC filtering and power factor correction in wind power and UPS applications, harmonic filtering in three-phase mains with high or unusual levels of harmonic distortion, a.m.o.

Thanks to their construction, they have a very low series resistance and a small self-inductance. Our basic design principle - preferring short winding elements with comparably large diameters - as well as the use of wavecut technology in many models, serves for high rms and surge current strength.

The three capacitor elements are connected in delta internally; the plant oil filling is environmentally friendly and serves for optimized heat dissipation and improved internal insulation. Very good self-healing characteristics and the integrated overpressure protection ("BAM") ensure safe operation and controlled disconnection in the event of overload or failure at the end of operating life.

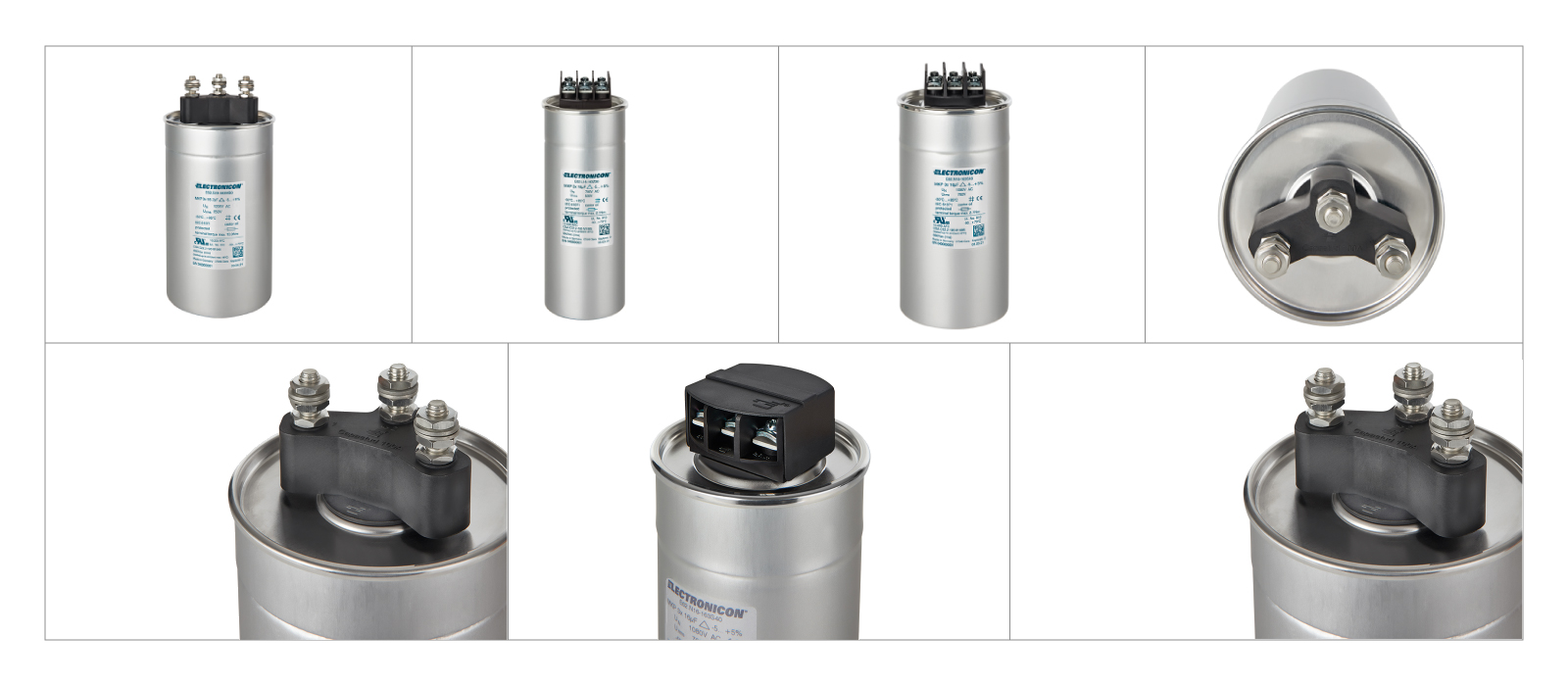

CAPAFIX™ is the new name of our optimized low-loss TORX terminals which can operate safely even at very high frequencies. They are also preferred by some as a flat alternative to the traditional, taller CAPAGRIP™ terminal of the E62-3ph series. The two sizes of CAPAFIX™ – Z3 (up to 39A per phase) and S4 (up to 56A/phase) – are complemented by the robust CAPASTUD™ with M10 studs that can withstand up to 100A per phase.

Both CAPAFIX™ terminals can be completed with an optional snap-on cover for protection from accidental contact (similar to IP10).

E62-3HF系列电容，带 CAPAFIX™ 和CAPASTUD™ 端子 用于高频滤波器的完美交流电容器

由于特殊的结构，它们具有非常低的串联电阻和小的自感。我们的基本设计原则 - 首选具有相对较大直径的短绕组元件 - 以及在许多型号中使用的薄膜切波技术，可提供高 rms 和浪涌电流强度。

三个电容元件在电容内部呈三角形连接；环保植物油填充物，用于优化散热和改善内部绝缘。良好的自愈特性和内置压力保护 (“BAM”)， 可确保电容安全运行、以及在过载或使用寿命结束发生故障时受控断开。

CAPAFIX™ 是优化的低损耗 TORX 端子的新名称，即使在非常高的频率下也能安全运行。有些人更喜欢将它们作为 E62-3ph 系列的传统、更高的 CAPAGRIP™ 端子的扁平替代品。 CAPAFIX™ 有两种尺寸——Z3（每相高达 39A）和 S4（每相高达 56A）——由坚固的 CAPASTUD™ 补充，带有 M10 螺柱，每相可承受高达 100A。

两个 CAPAFIX™ 端子均可配备可选的卡扣式盖板，以防止意外接触（类似于 IP10）。
