带内置安全保护装置的直流电容器

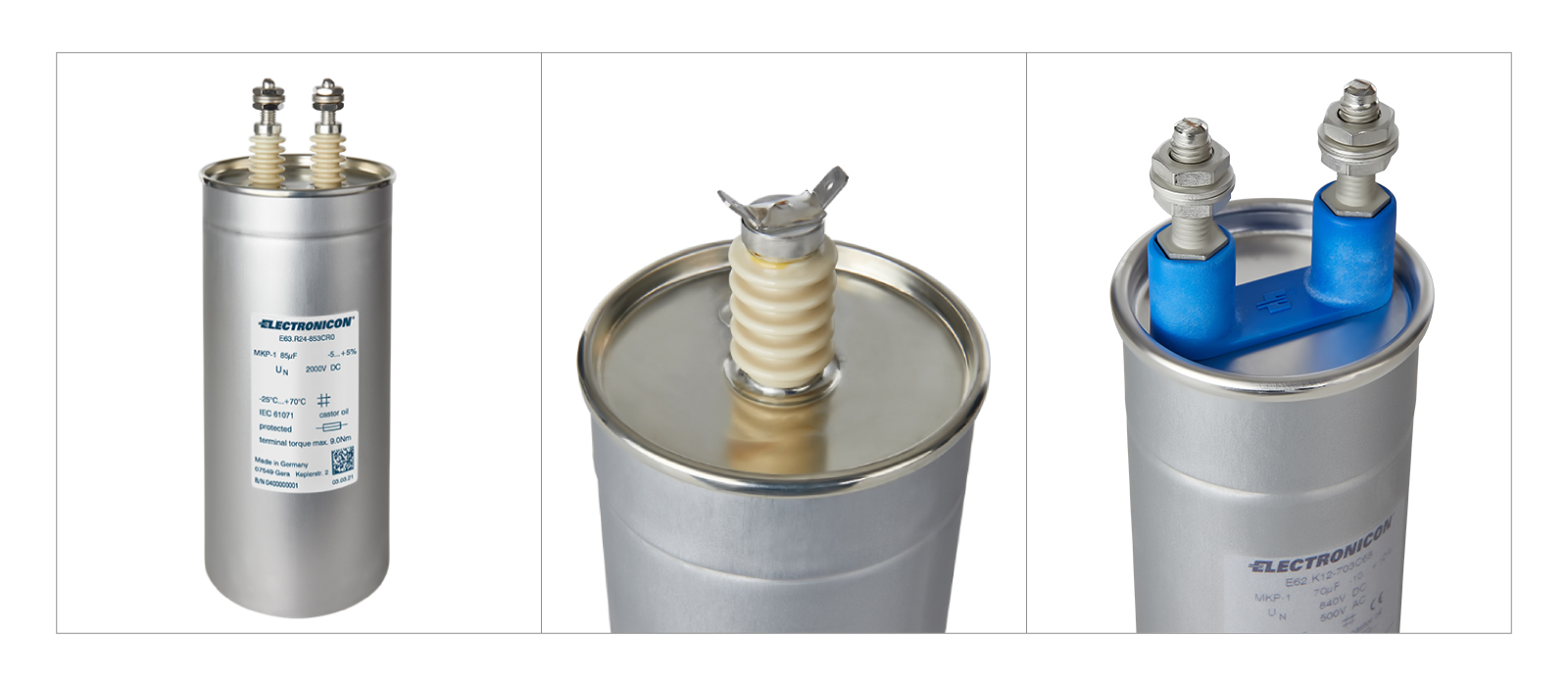

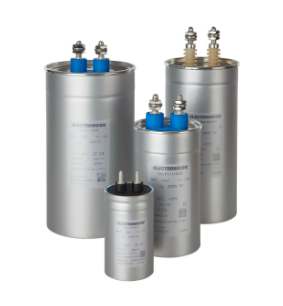

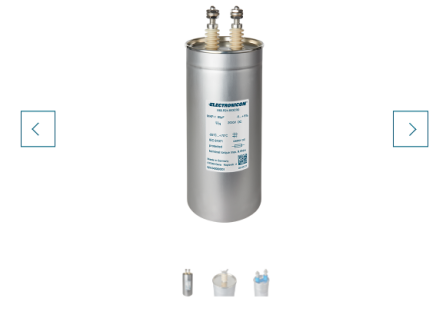

Long life, safe failure mode. Our E63s are pure DC capacitors with high capacitance density and an autonomous break action mechanism (BAM).
使用寿命长、安全故障模式。我们的E63系列电容器是纯粹的大容量直流电容，带自主拉断机制 (BAM)。
Detailed description (please consult for model parameters)
The special kind of films and coating patterns used in our oil-filled E63-capacitors give them a high specific ratio of capacitance to volume and makes them extremely overvoltage proof.
Very good self-healing characteristics and the integrated autonomous overpressure protection ("BAM") ensure safe operation and controlled disconnection in the event of overload or failure at the end of operating life. Hence the E63s are interesting particularly for applications with high AC ripple currents, e.g. as smoothing or supporting capacitors in buffer storage circuits, and in sensitive environment with high safety requirements.
Note that the presence of an overpressure mechanism adds substantially to the self-inductance of the capacitor, and limits the surge current rating. If self-inductance and surge current are important issues, then our ranges E50, E51, E60, E61, E66, E67, E53 or E55 may be considered as a more adequate option.
E63系列充油电容器，使用特殊薄膜和金属化蒸镀方案，具有很高的容量体积比，过电压保护能力很强。
良好的自愈性能和内置的自主过压力保护装置("BAM")，可确保电容安全运行和在发生过载故障或使用寿命结束时有控制地断开。因此，E63系列电容器特别适用于具有高交流纹波电流的应用，例如作为缓冲存储电路中的平滑或支撑电容，以及在安全要求较高的、敏感的应用环境中。
请注意，过压力保护装置的存在大大增加了电容器的自感 ，并限制了浪涌电流的额定值。如果自感和浪涌问题很重要，则可能更适合选择我们的 E50, E51, E60, E61, E66, E67, E53 或E55 系列电容器。
