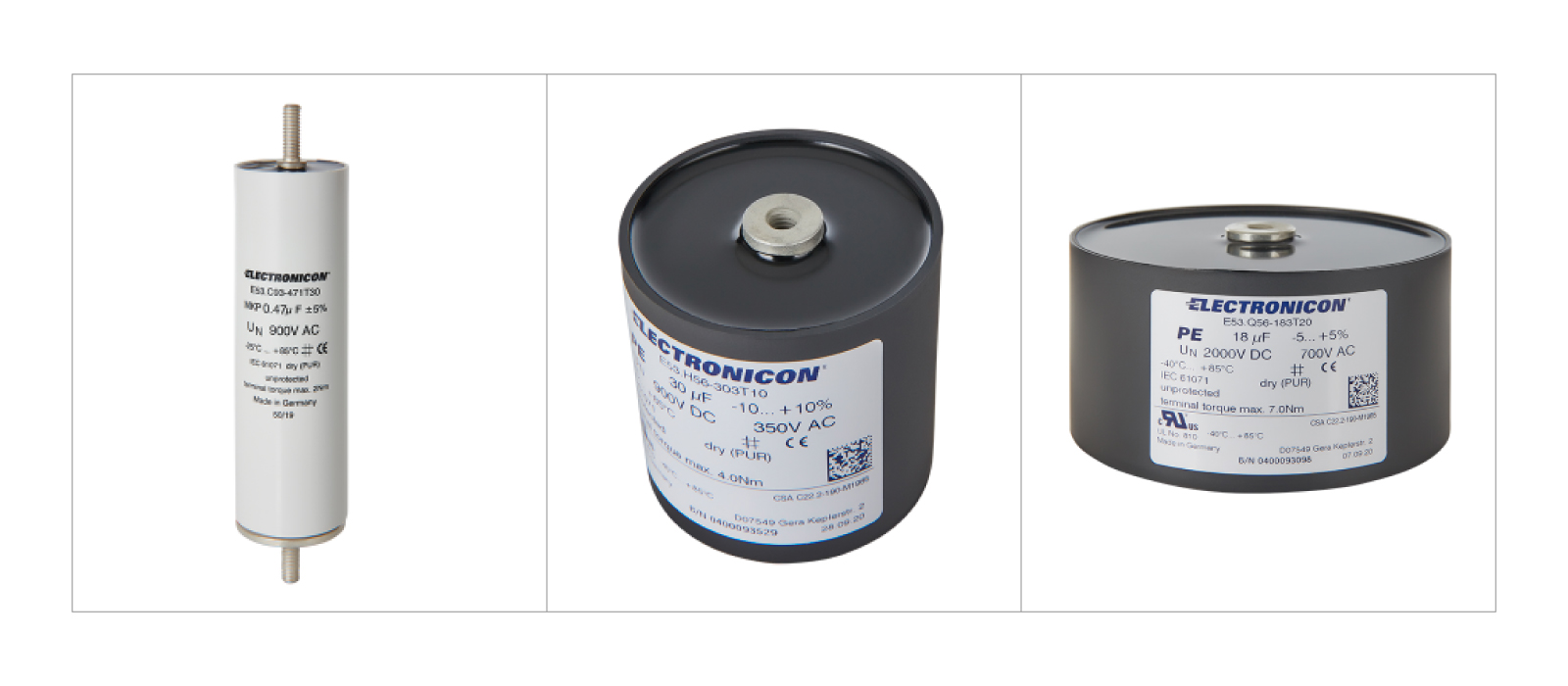

Cylindrical capacitors for high inrush currents用于高浪涌电流的圆柱形电容器
Low-inductance AC capacitors
低电感交流电容器
For AC-applications with high frequencies and powerful surge currents which require short current paths and strong terminals.
适用于需要短电流路径和强端子的高频和强大浪涌电流的交流应用。
Detailed description (please consult for model parameters)
详细描述（型号参数请咨询）
All in one: High rms and surge current AND low self-inductance
E53 capacitors have a particularly low series resistance and high pulse strength. Using sophisticated metallizing patterns, our SINECUT slitting technology and clever winding geometries, they are especially suited for the damping of GTO thyristors and low-inductance buffer circuits with high rms currents. Along with their very good ratio of capacitance to volume, these components do also have very good self-healing characteristics without loss of capacitance.
Their very low self-inductance makes them suitable for use in high-current applications with medium frequencies.
The capacitors of the E53 product family are housed in flame-retardant plastic cans (V0) and filled with solid resin. Special care has been taken both in terms of design and conservative electrical rating to ensure reliable operation even under tough environmental conditions. Connection is usually made through robust axial terminals with internal thread.
E53系列 电容，具有特别低的串联电阻和高脉冲强度。它们使用复杂的金属化蒸镀方案、SINECUT™薄膜分切技术和巧妙的绕组几何设计，特别适用于GTO晶闸管和低电感、高rms电流缓冲电路的阻尼。 除了出色的容量体积比之外，电容元件具有良好的自愈特性，无容量损失。 极低的自感适用于中频大电流应用。
E53系列电容器装在阻燃塑料外壳内(V0), 并填充固体树脂。在设计和保守的电气额定值方面均特别谨慎，以确保电容即使在恶劣的环境条件下也能可靠运行。电气连接通常采用坚固的带内螺纹的轴向端子。
